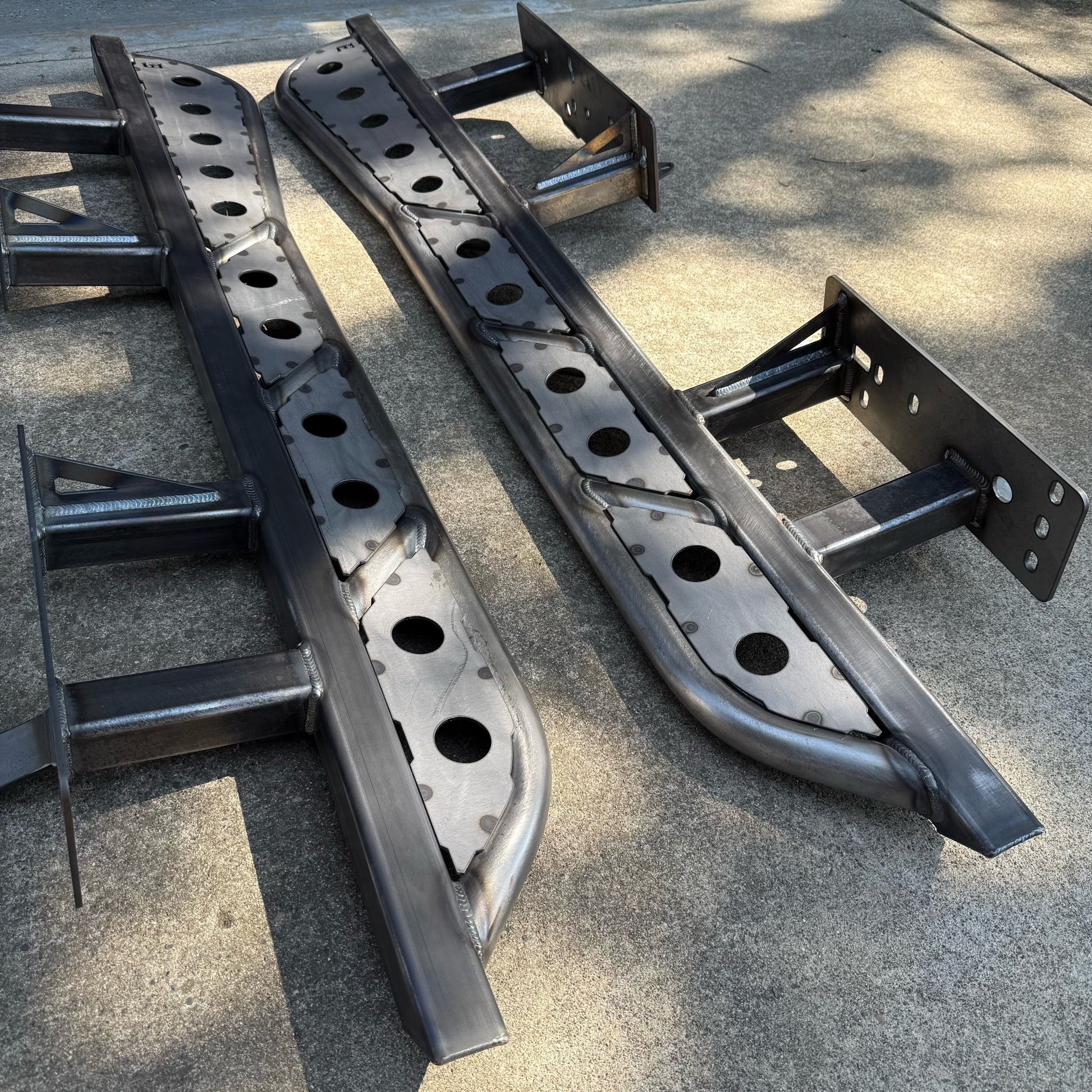

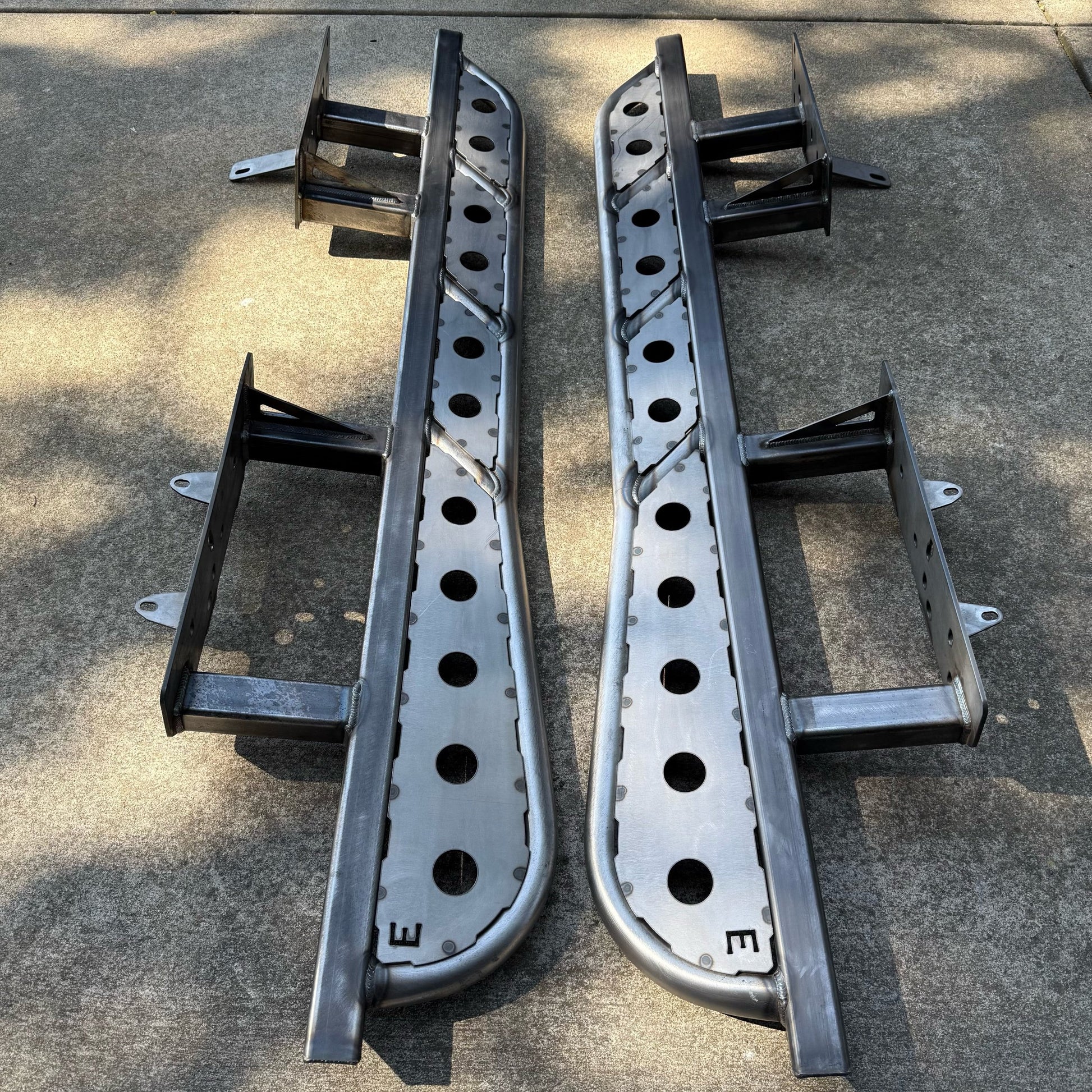

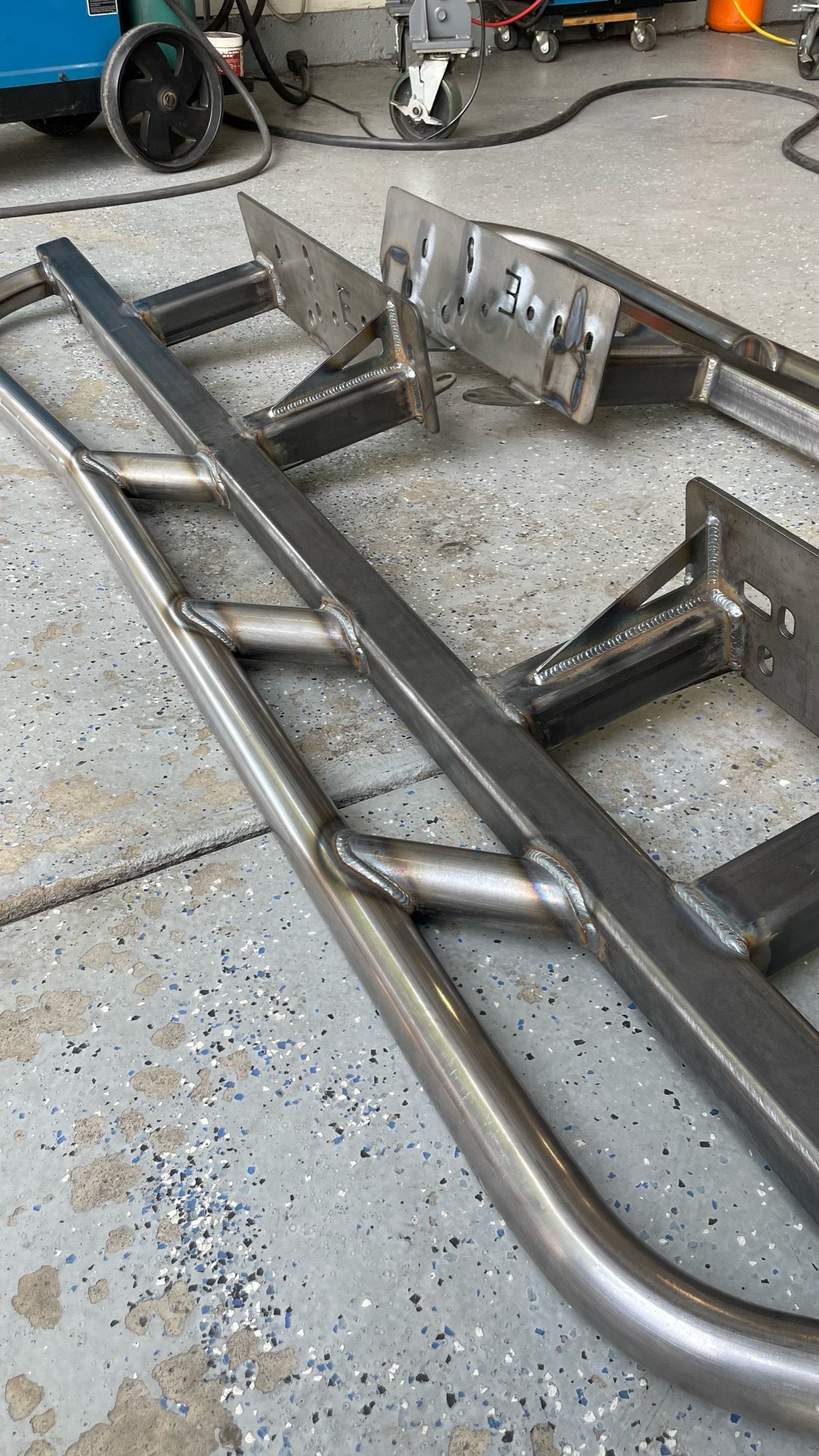

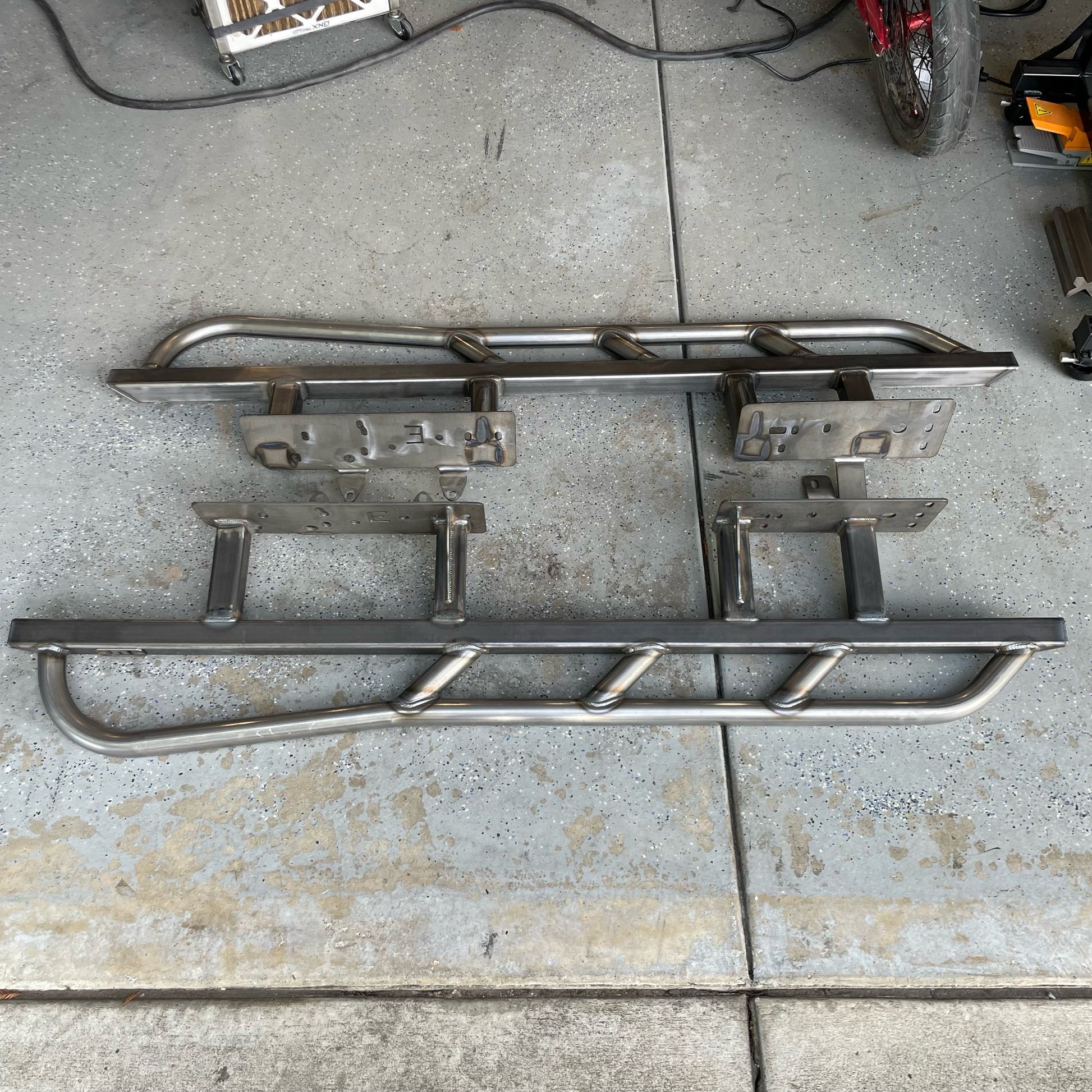

Elevate Metalcraft GX470 Rock sliders are made from .120” wall DOM or HREW tubing. (DOM is recommended for heavy off-roading due to the 40% higher yield strength over HREW.)

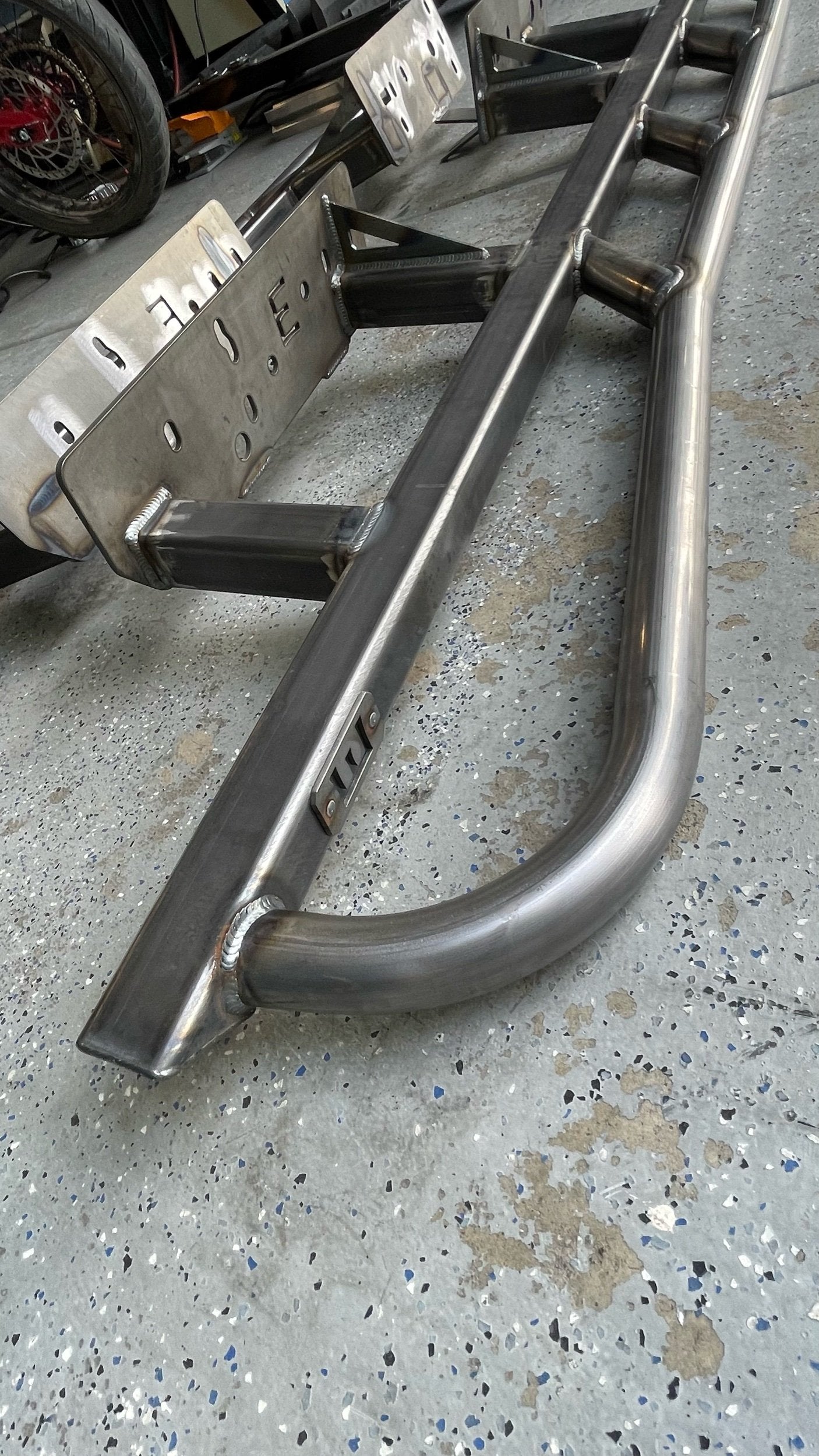

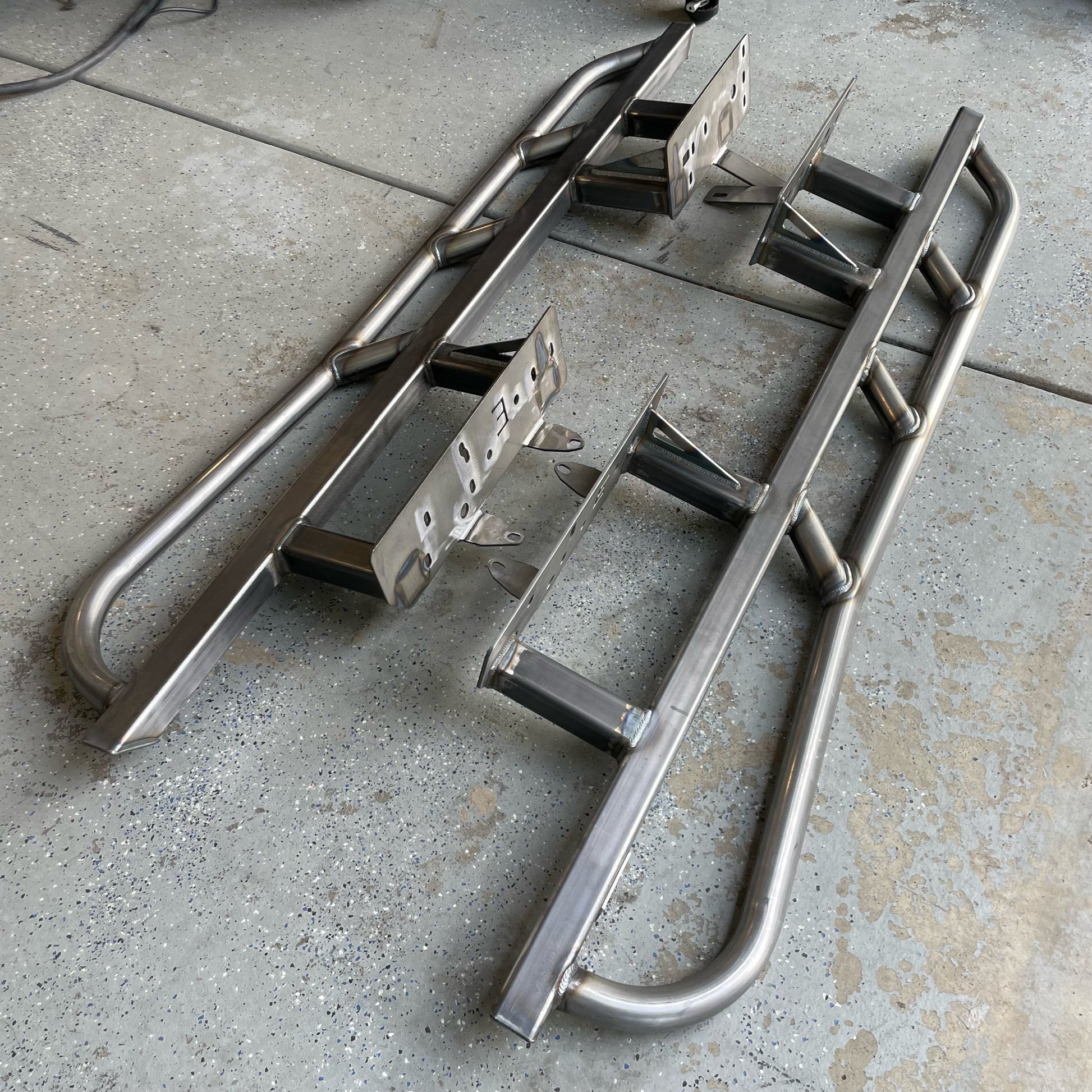

Build from 2"x2" .120 wall square main tube and legs for added rigidity (Note the full round tube photos are from old versions no longer available)

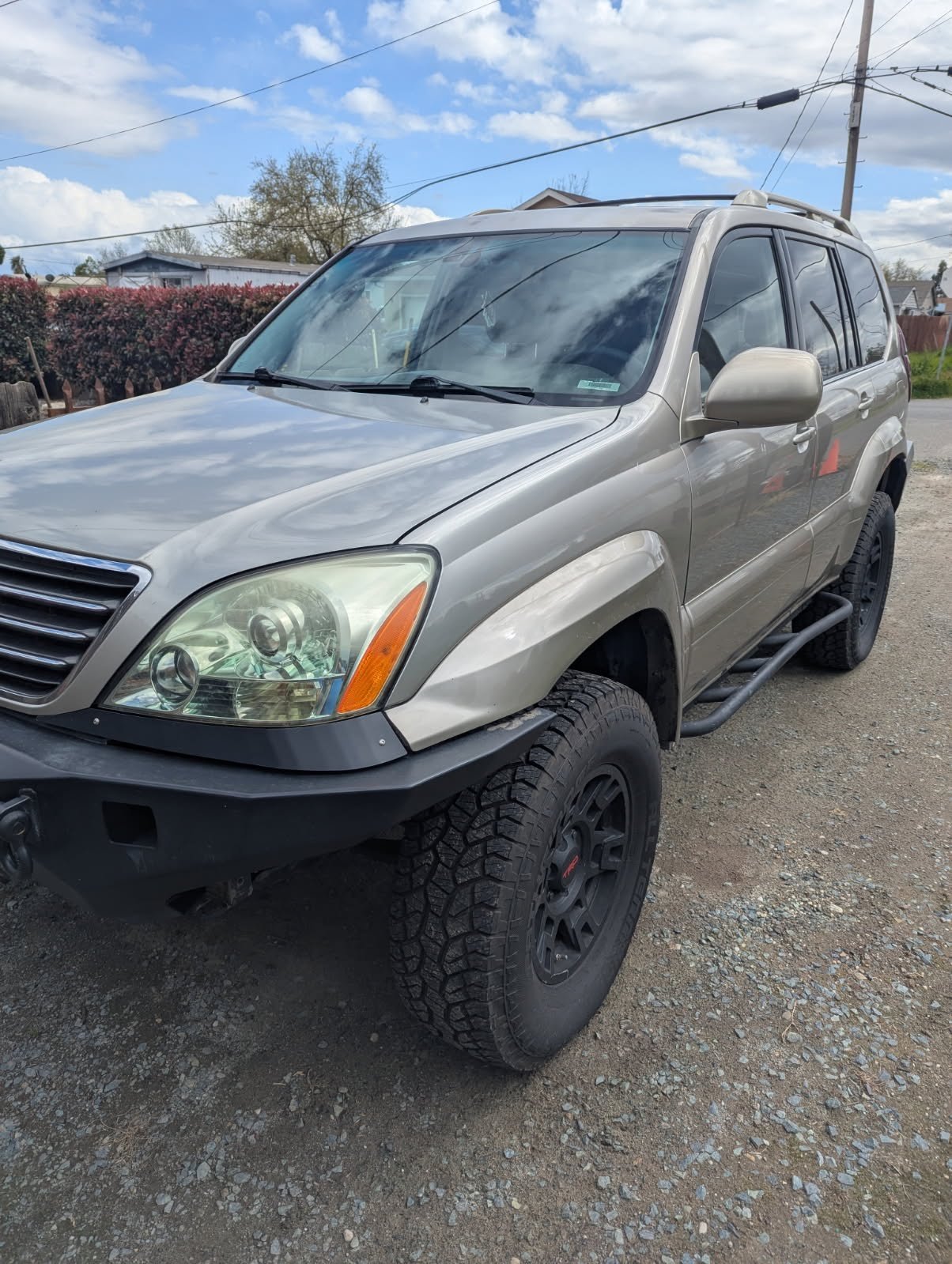

Feature a rear kick out for added body protection and pivoting around obstacles

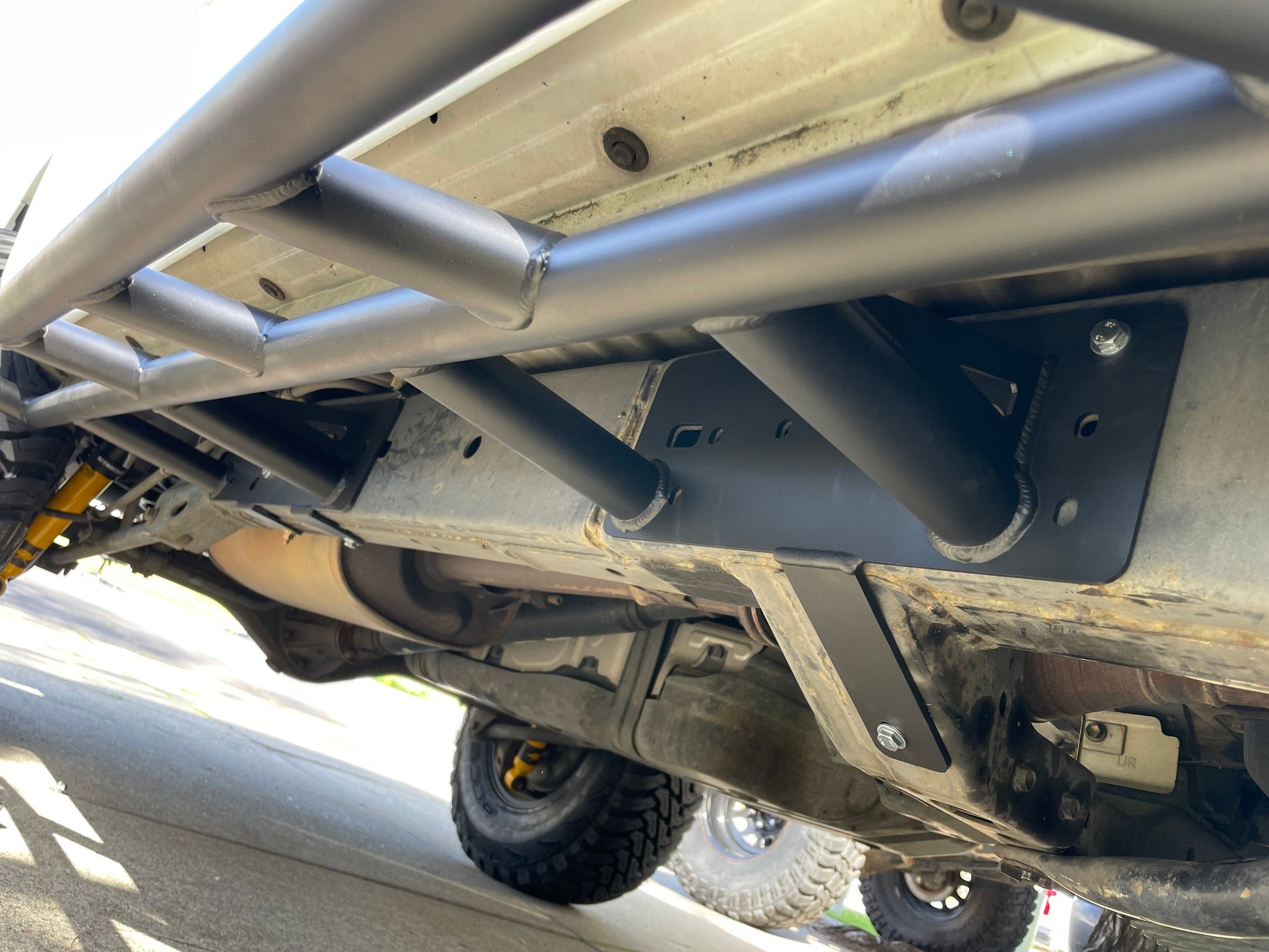

These were designed to be rock solid by bolting into both the outer and lower frame sides

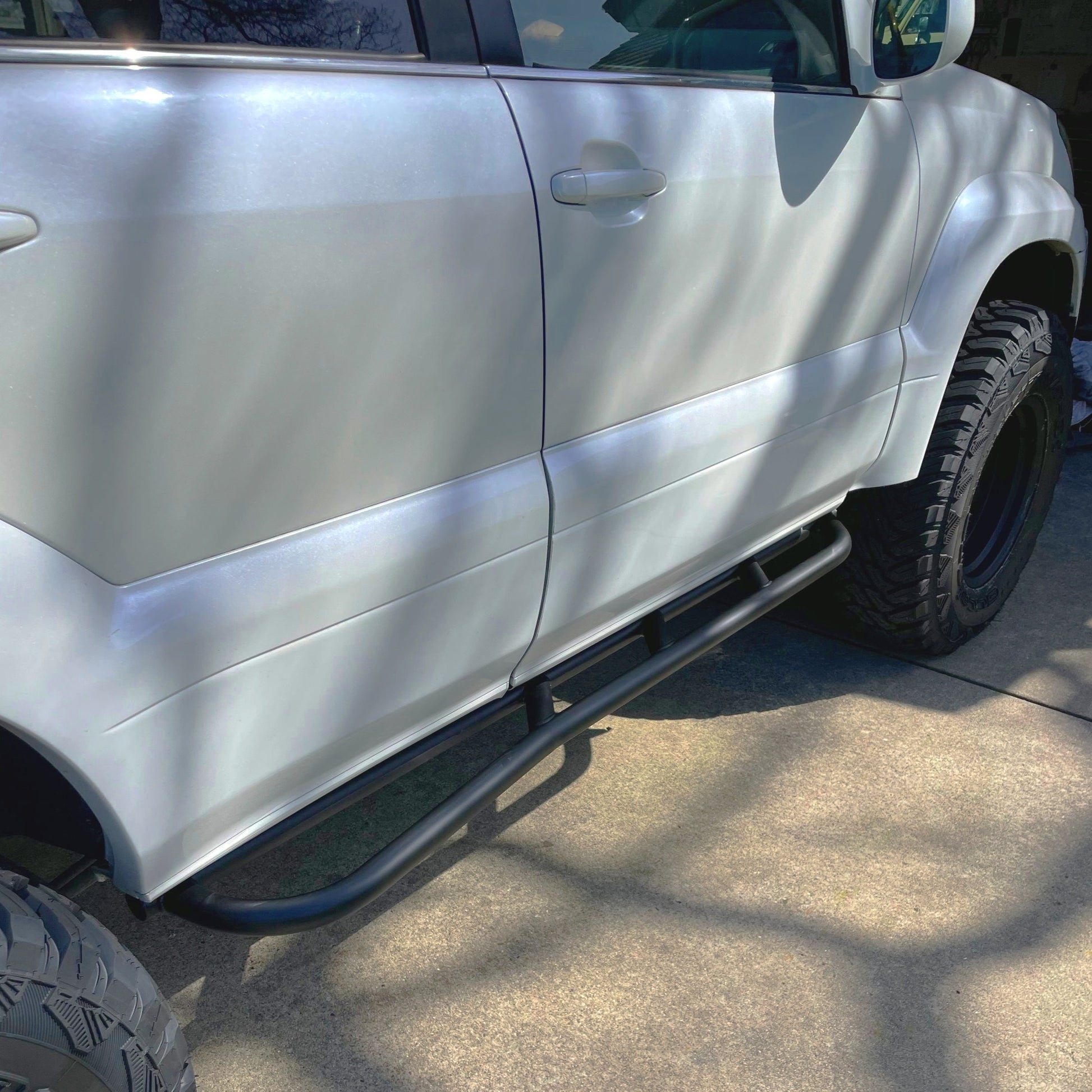

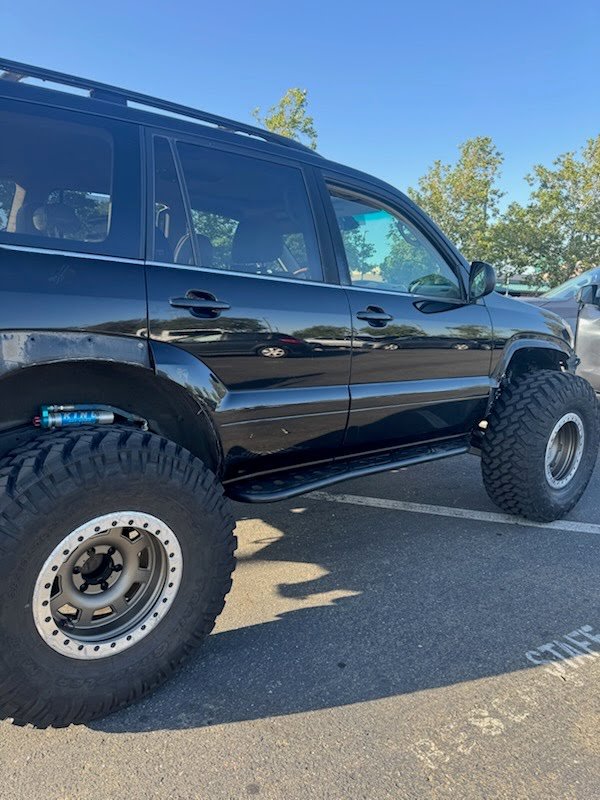

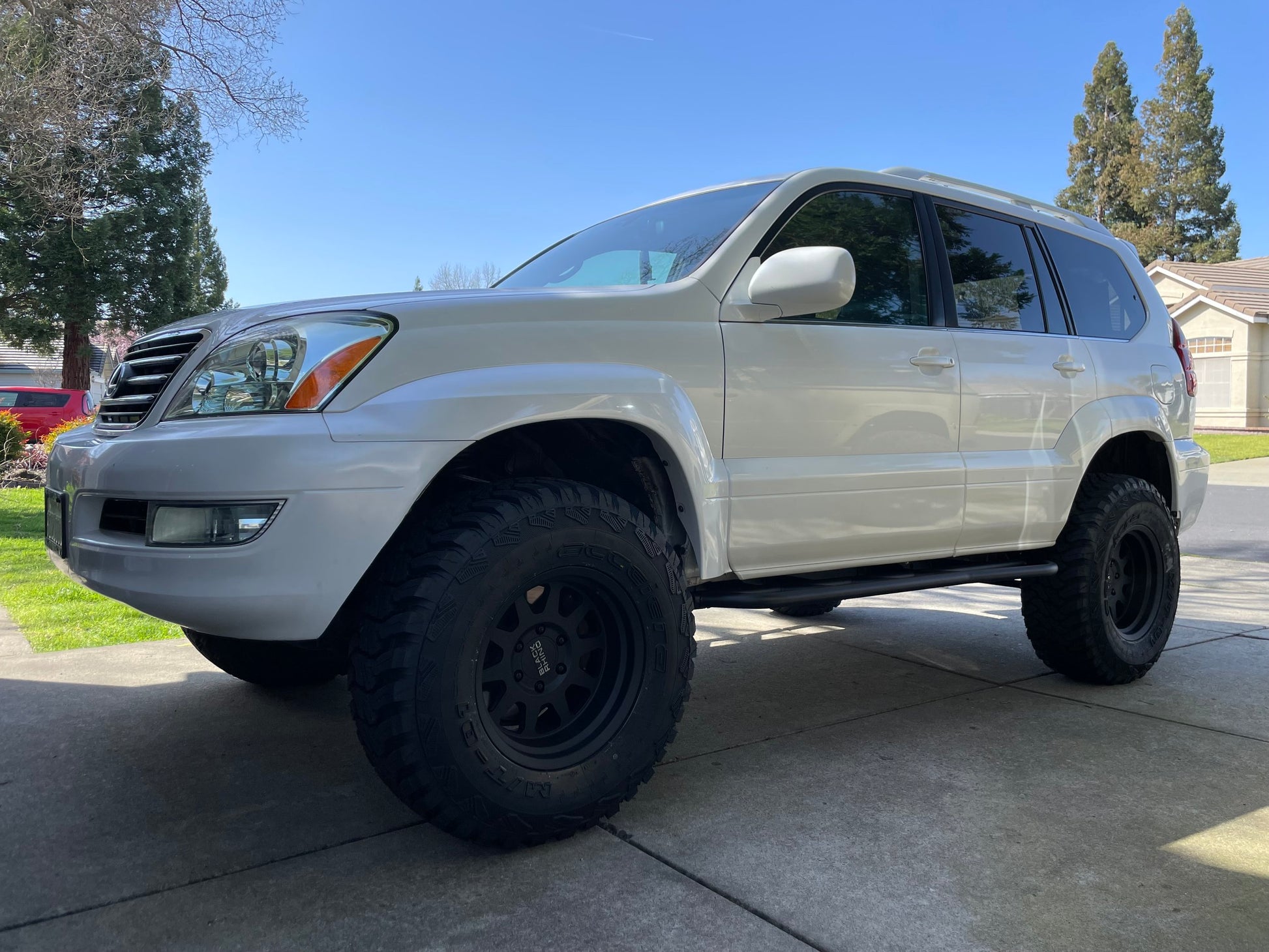

Built with a 0 degree angle the sliders sit .75” below the body seam for high ground clearance

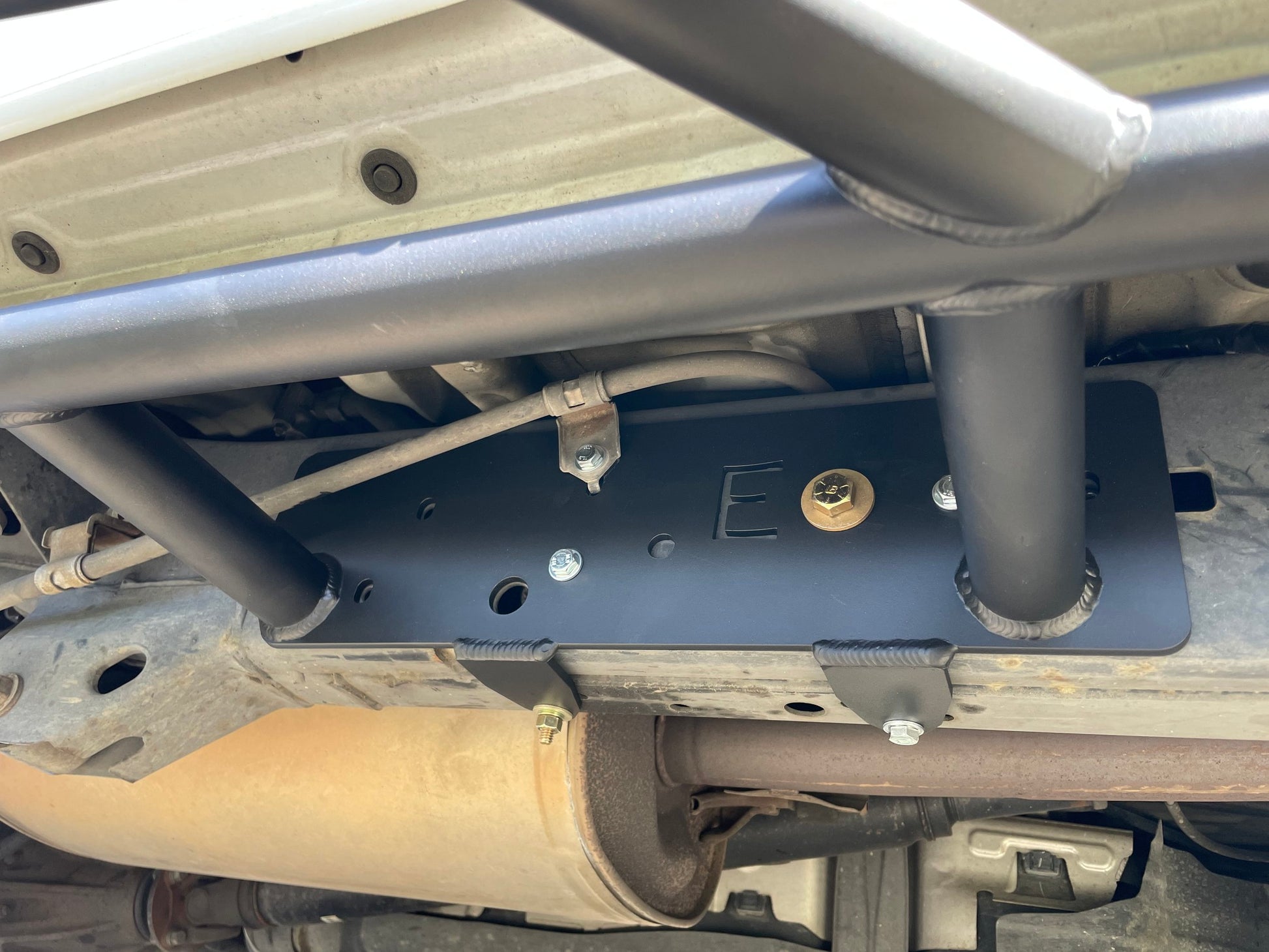

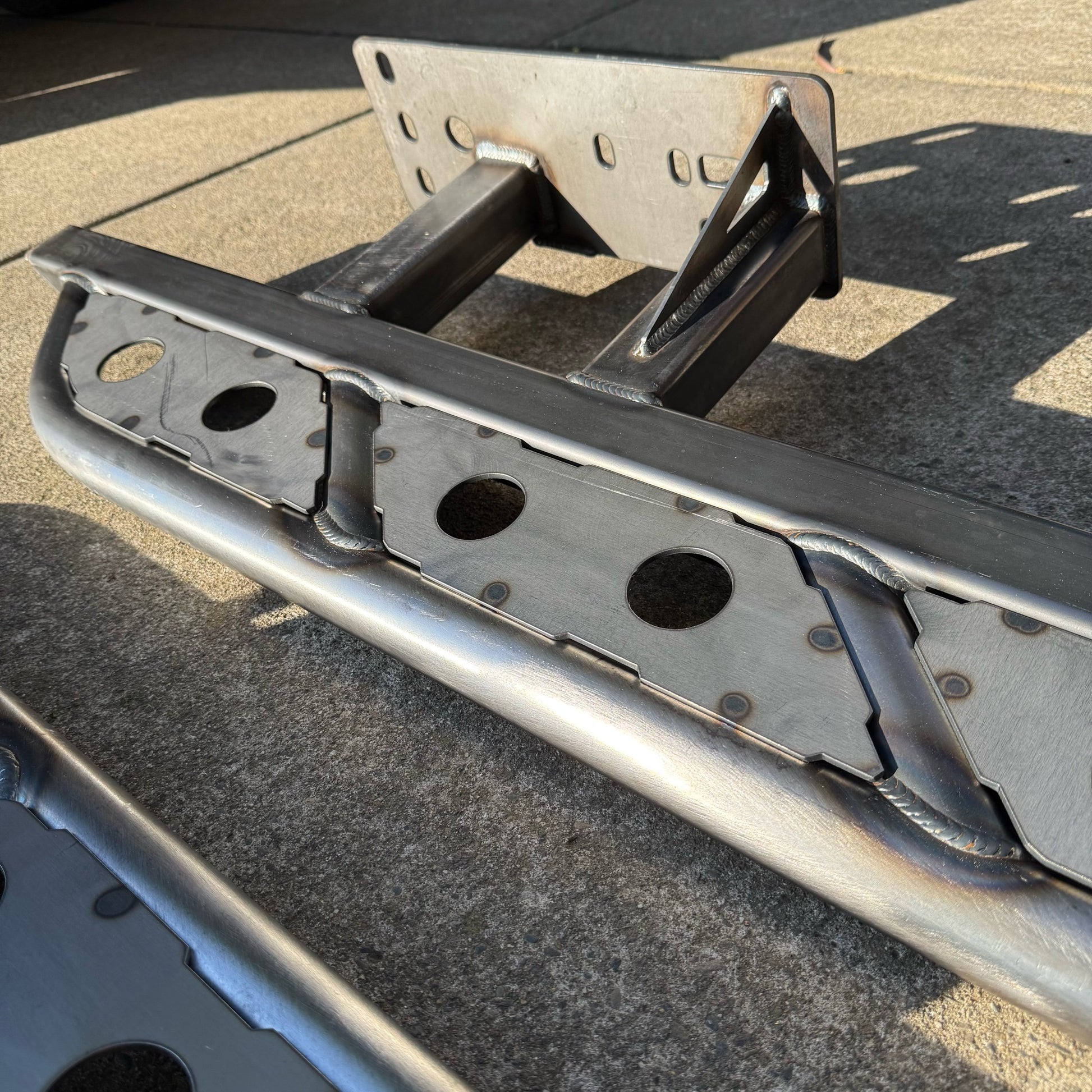

Frame mounting plates are made from .188” thick steel plate
These are 100% bolt on to factory mounting locations with included hardware. No drilling is required

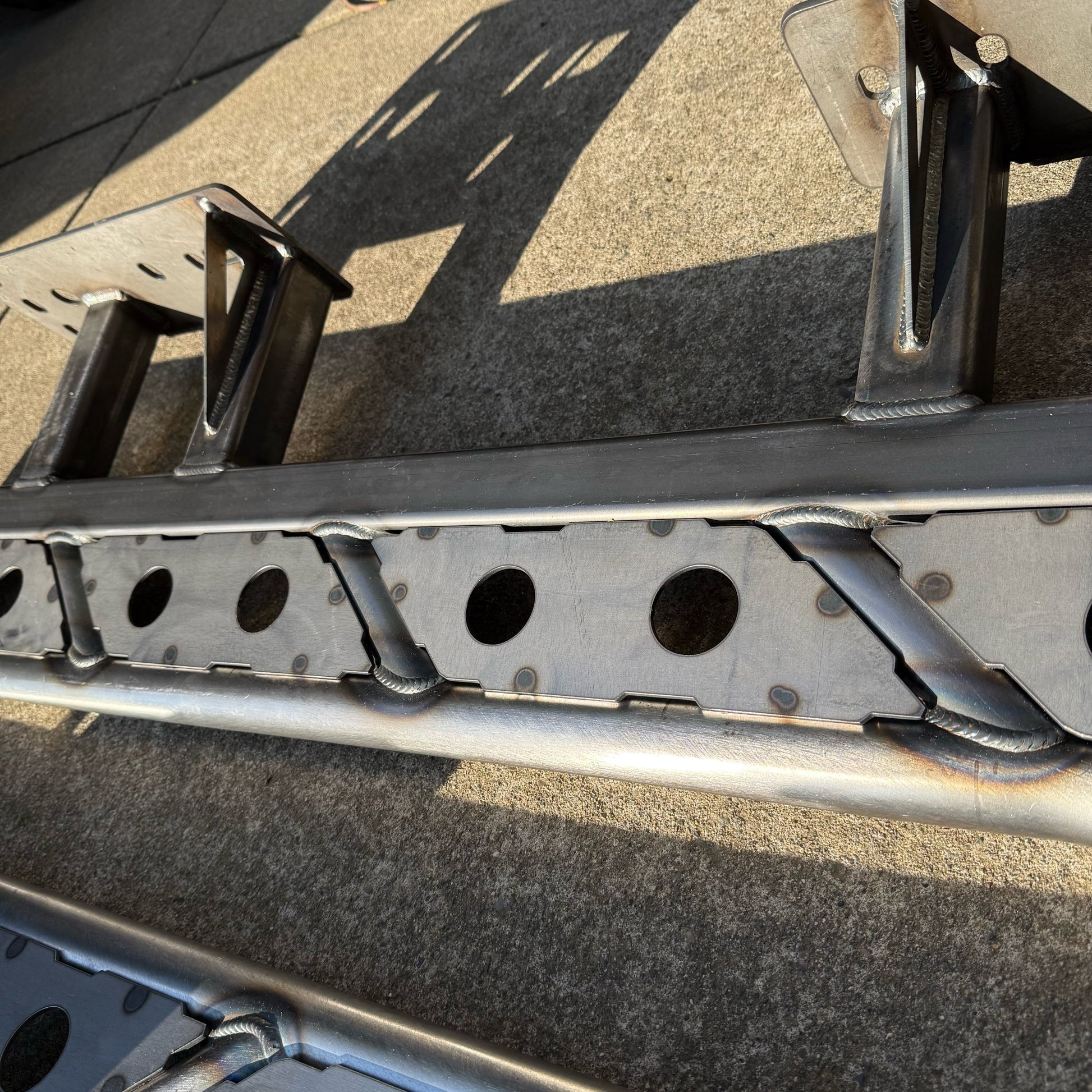

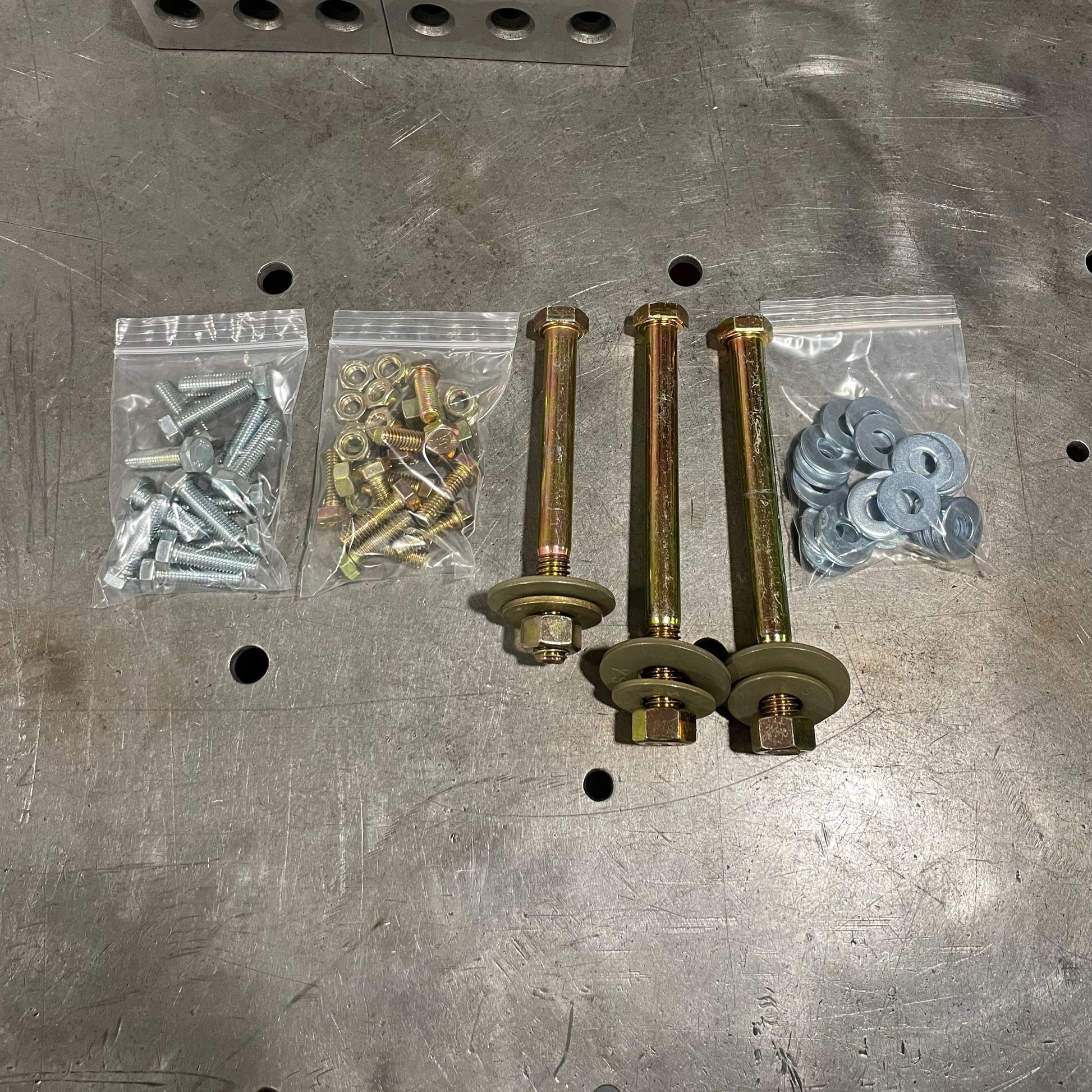

Mounting plates provide access holes for wire fishing additional bolts through the frame, for a extremely solid fit that can withstand off-road use. Additional 1/2” grade 8 hardware is installed all the way through the frame for additional piece of mind
For local pickup installation is optional for 120$ (1.5 hours)
***NOT compatible with KDSS. System can be removed for proper fitment***
*Shipping is NOT AVAILABLE for powder coating or spray painted rock sliders
Sliders are built to order with a 2-3 week lead time
Powder coating available with an additional 2 week lead time to completion
